Linear Feeder
Linear Feeder · Vibratory Dosing

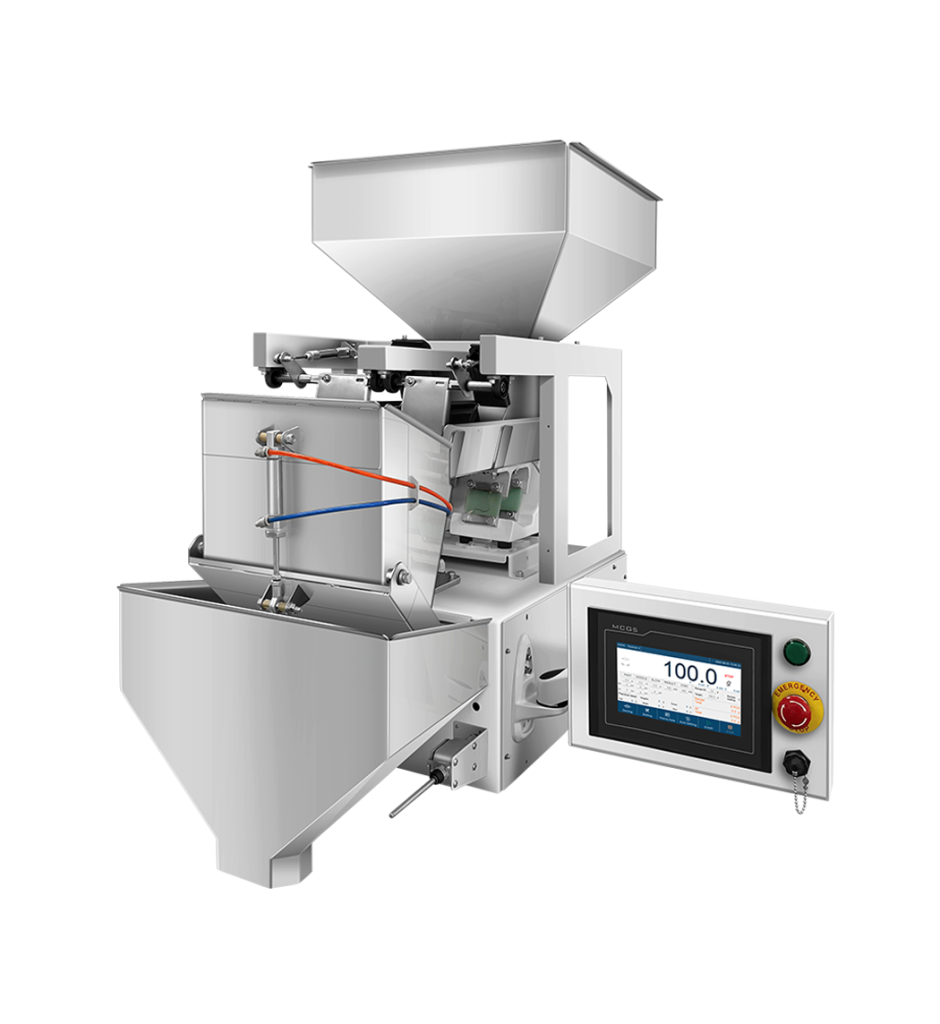

LF-5K

Linear feeder for granular and powder materials with high-speed dosing
LF-5K is a linear feeder for granular and some powder materials. The vibratory feeding mechanism delivers two-speed multi-stage feeding while a pneumatic cylinder drives fast discharging. Wide weighing range from 0.25 to 5 kg with ±2–5 g accuracy at up to 900 packs per hour. SS304 material-contact construction with intelligent self-adjusting target value.
Max capacity
5 kg
0.25 – 5 kg range
Best accuracy
±2–5 g
two-speed dosing
Top speed
900 pcs/h
top speed
Request a quote
Download datasheet
Specifications

Quick specs

Weighing range
0.25–5 kg
Division
1 g
Best accuracy
±2–5 g
Top speed
900 pcs/h
Hopper volume
8 L
Feeding method
Two-speed vibratory feeding with pneumatic discharge
Material
SS304 (material-contact parts)
Pneumatic
0.4–0.6 MPa, 2 m³/h
Power
AC 220V ±10%, 50/60 Hz, 120 W
Use cases

Applications

Where this model performs best
  • Grain, feed, rubber
  • Plastic and chemical industries
  • Quantitative packaging machinery
  • Granular and some powder materials
Custom configurations

OEM & ODM ready

For private label, system integration, and custom builds

Built for integration into your line, your machine, or your brand.

As General Measure’s South African partner, R&D Weighing supports OEM and ODM engagements across the weigher range. From private-label badging through to custom rejector systems, conveyor heights, communication protocols, and full system integration with your existing PLC, MES, or ERP environment.

  • Private-label finishing & branding
  • Custom belt sizes & platform heights
  • PLC / MES / ERP integration
  • Bespoke rejector configurations
  • Multi-line synchronisation
  • Engineering support throughout commissioning
Standards

Compliance & quality

Tested and certified for industrial environments
CE

CE compliant

Conforms to applicable EU directives for industrial weighing equipment.
IP65

IP65 rated

Dust-tight enclosure with protection against low-pressure water jets.
SS304

Stainless steel build

Food-grade SS304 construction throughout. Hygienic and corrosion resistant.
Documentation

Datasheet

Full specifications and dimensional drawings
📄
Datasheet on request
Contact us for the full LF-5K datasheet
Request →
Get pricing

Request a quote

Tell us about your application and we will reply within one business day
