Duplex Packing Filler · Dual Head
AF-1K II
High-throughput dual-head granule filler doubling AF-1K speed

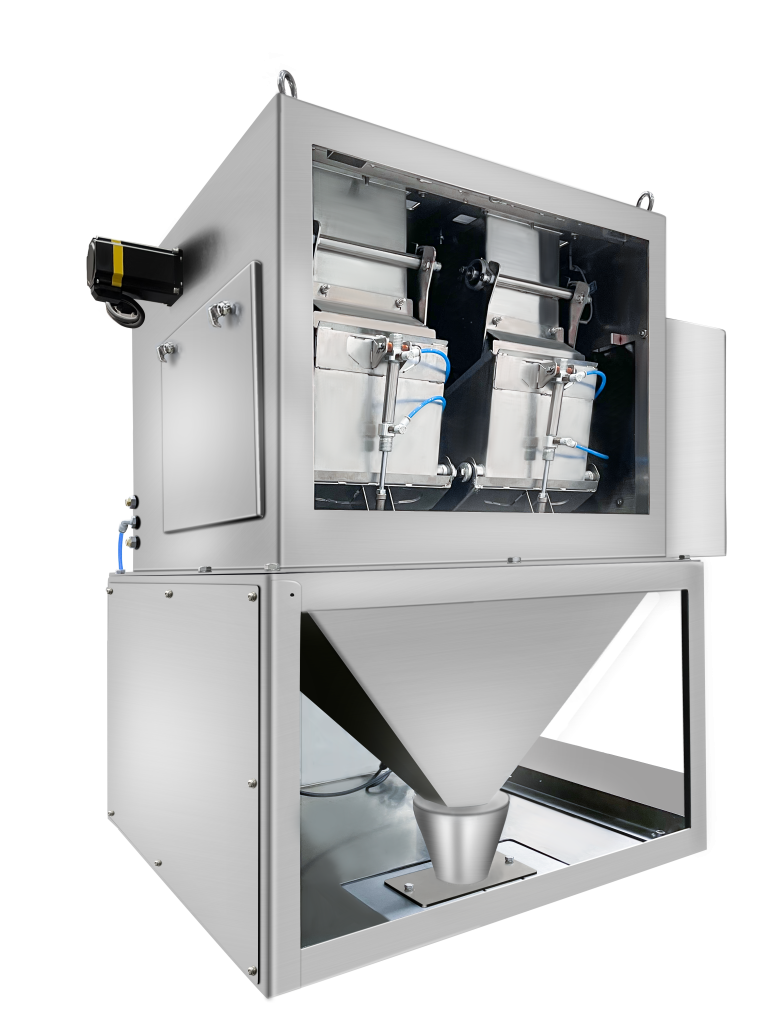

PaxGo AF-1K II is the duplex (dual-head) version of the AF-1K, doubling output to 3,600 packs per hour while maintaining ±1–3 g accuracy across the 50 g to 1 kg range. Two parallel weighing hoppers feed alternately into one packing line for continuous high-speed operation.
Max capacity
1 kg
50 g – 1 kg per head
Best accuracy
±1–3 g
per pack
Top speed
3600 pcs/h
dual-head throughput
Specifications
Quick specs
Weighing range
0.05–1 kg
Division
1 g
Best accuracy
±1–3 g
Top speed
3600 pcs/h
Hopper volume
2.8 L × 2
Feeding method
Step motor + vibrator feeding and pneumatic discharge
Material
Carbon steel or stainless steel
Pneumatic
0.4–0.6 MPa, 2 m³/h
Power
AC 220V ±10%, 50/60 Hz, 400 W
Use cases
Applications
Where this model performs best
- Rice, pulses, beans
- Sugar, salt, seeds
- Plastic granules
- Animal feed, maize, soybeans
Custom configurations
OEM & ODM ready
For private label, system integration, and custom builds
Built for integration into your line, your machine, or your brand.
As General Measure’s South African partner, R&D Weighing supports OEM and ODM engagements across the weigher range. From private-label badging through to custom rejector systems, conveyor heights, communication protocols, and full system integration with your existing PLC, MES, or ERP environment.
- Private-label finishing & branding
- Custom belt sizes & platform heights
- PLC / MES / ERP integration
- Bespoke rejector configurations
- Multi-line synchronisation
- Engineering support throughout commissioning
Standards
Compliance & quality
Tested and certified for industrial environments
CE
CE compliant
Conforms to applicable EU directives for industrial weighing equipment.
IP65
IP65 rated
Dust-tight enclosure with protection against low-pressure water jets.
SS304
Stainless steel build
Food-grade SS304 construction throughout. Hygienic and corrosion resistant.
Documentation
Datasheet
Full specifications and dimensional drawings
